I. Project completion information

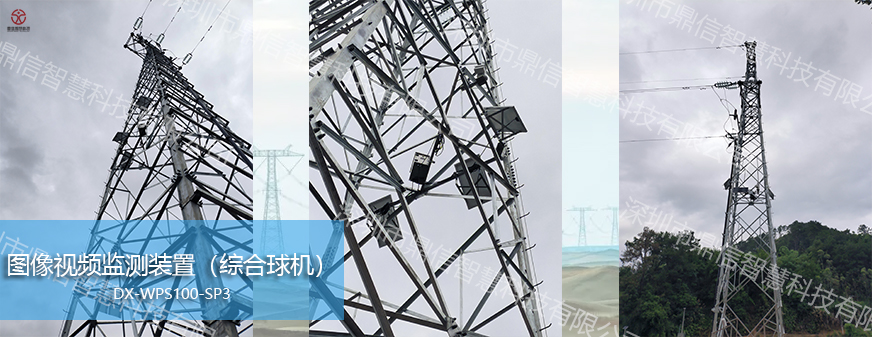

Installation project: transmission line image video monitoring device (integrated dome)  equipment installation case

Project time: 2024.05.29

Project completion unit: SHENZHEN DINSEE SMART TECHNOLOGY CO.,LTD

DX-WPS100-SP3 transmission line video online monitoring device (integrated dome) by DX-WPS100-SP3 DX-WPS100-SP3 front-end PTZ camera to collect image/video data, and then the data will be transmitted through the 4G/5G network in the monitoring center, the management personnel can be viewed in real time, to prevent the overhead line because of external damage, three spans, trees over the high as well as the vehicle across the line caused by unnecessary line failures due to other potential safety hazards. The data will then be transmitted to the monitoring center through 4G/5G network.

II. Product Functional Characteristics

1, integrated monitoring of the basic configuration: the main control unit, video monitoring unit, dual-spectrum infrared hill fire monitoring device, laser anti-exterior breakage monitoring device, micro-meteorological monitoring device, tower tilt monitoring device, communication unit, power supply unit, mounting brackets and auxiliary materials.

2, real-time video continuous transmission: continuous video should have more than 12 consecutive hours of real-time video monitoring and terminal video recording, usually at least 1 hour of video transmission per day; .

3, high-definition three-dimensional panoramic visual: equipped with horizontal 360 °, vertical ± 90 ° rotation omnidirectional PTZ camera, the achievement of panoramic field of vision monitoring; ;...

4, starlight night vision full-color patrol: industrial-grade super starlight night vision, light-sensitive intensity as low as 0.001Lux, no fear of darkness, still colorful; ;...

5、Dynamic Capture Patrol; .

6, ultra-long-range multi-point visualization: 40 times zoom (optional), up to 255 preset positions, 16 patrol lines; .

7, AI video hidden danger identification: lightweight, low-power AI algorithms to achieve hidden danger end-side intelligent identification, video forensics; ;

8, edge data massive pooling: 4G/5G/WIFI/OPGW fiber optic network and other rich interfaces, to achieve the edge side of the state-aware data pooling; .

9, full perception visualization monitoring: through the AI intelligent comprehensive analysis, as well as hardware equipment and software management system in one of the integrated device, can realize the video, image, anti-fire, laser anti-breakage, ice, micro-weather, tower tilt, line clamp temperature, dance, arc sag, bolt loosening, stress of the data for integrated monitoring, and will be the results of the measurements through the communication network transmission to the state of the monitoring agent or status Monitoring master station; .

10, power supply continuity: integrated power supply system using monocrystalline silicon solar power supply, continuous no light can maintain the normal operation of the device 15 days of power supply requirements.

SHENZHEN DINSEE SMART TECHNOLOGY CO.,LTD    to innovative research and development of transmission and distribution lines online monitoring devices, overhead transmission lines, power cable safety equipment and intelligent mobile line visualization monitoring system, anti-mountain fire infrared monitoring devices, transmission lines to prevent external breakage of the alarm device, line visualization monitoring, real-time monitoring of the state of the power lines, power grid micro-meteorological monitoring devices, warning alarms, bird-driven devices, law enforcement recorders and so on. The products have been widely used in electric power related sites all over the country, and have received good feedback from customers!
